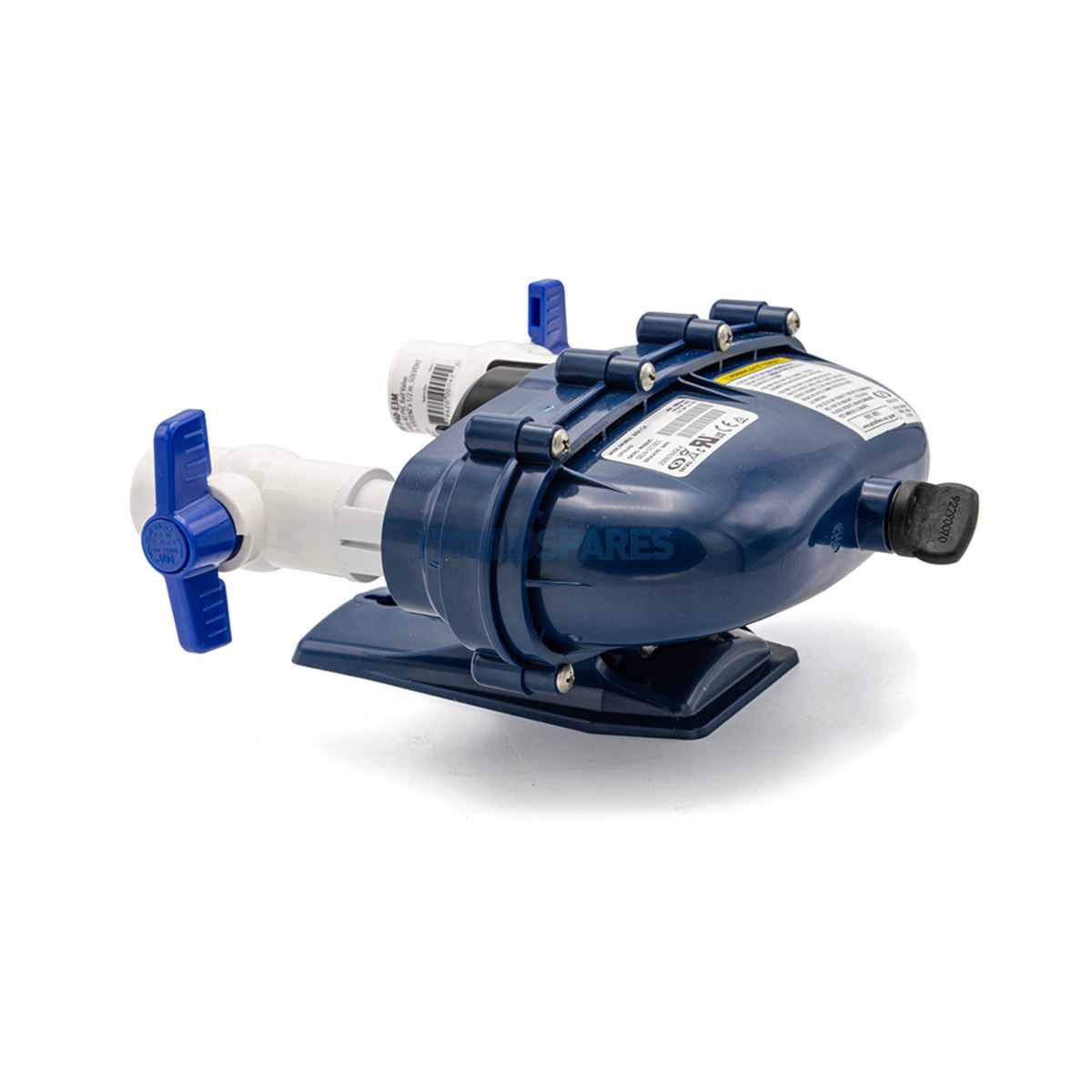

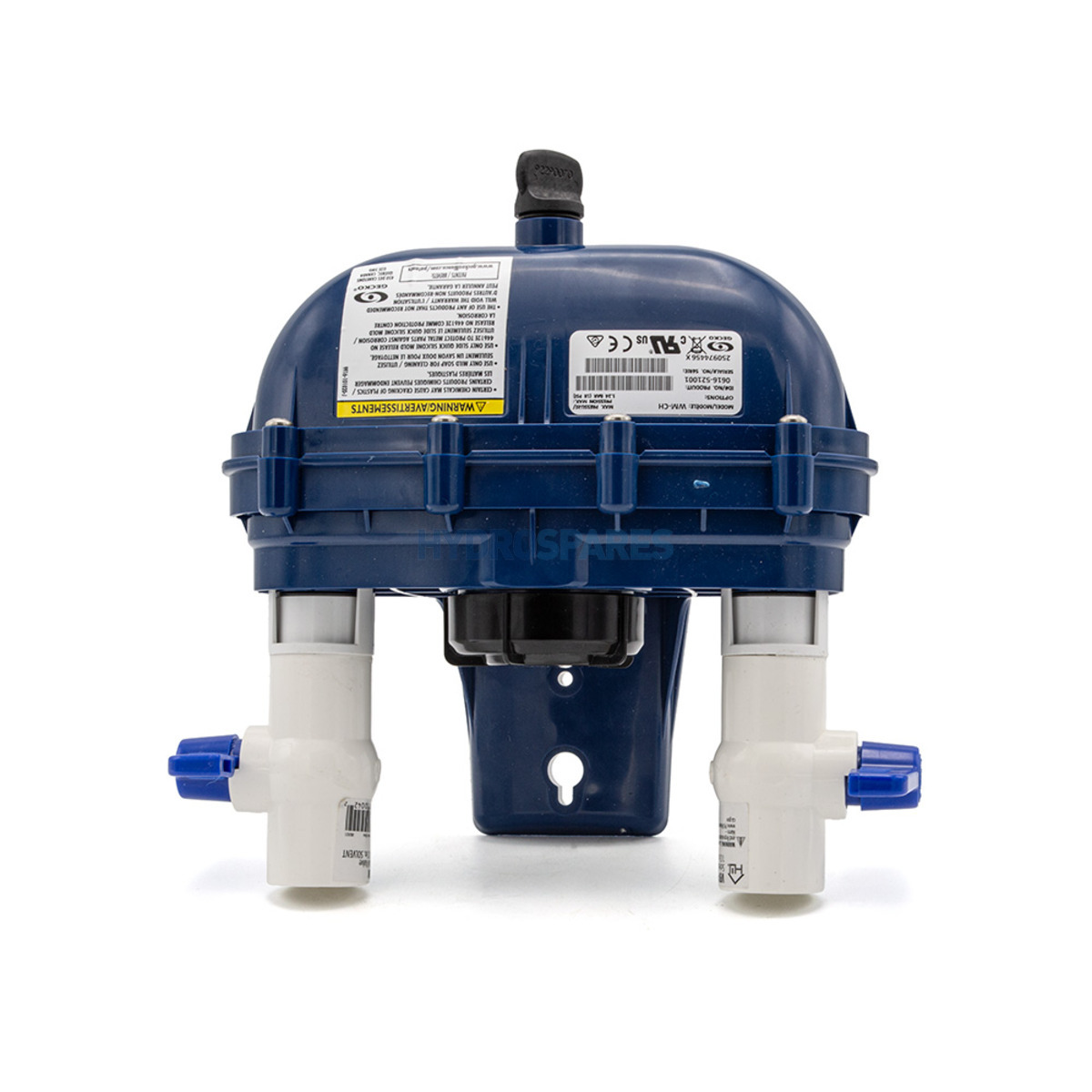

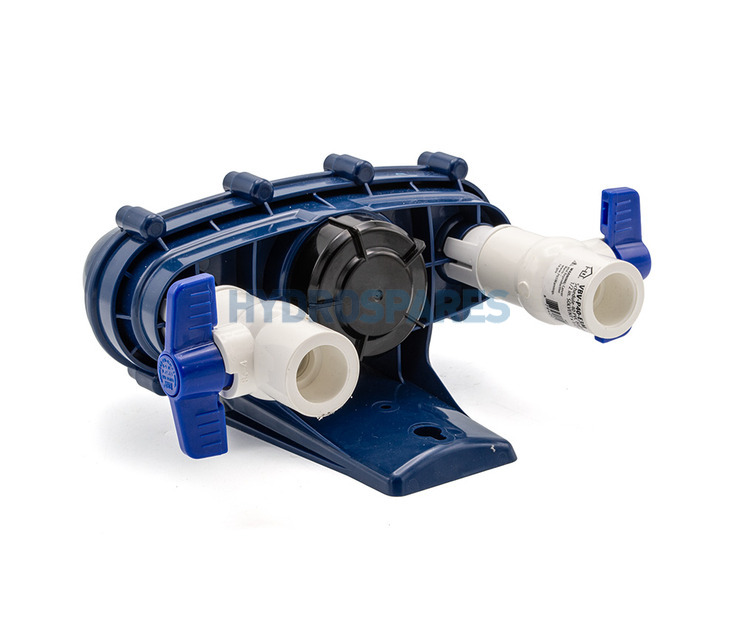

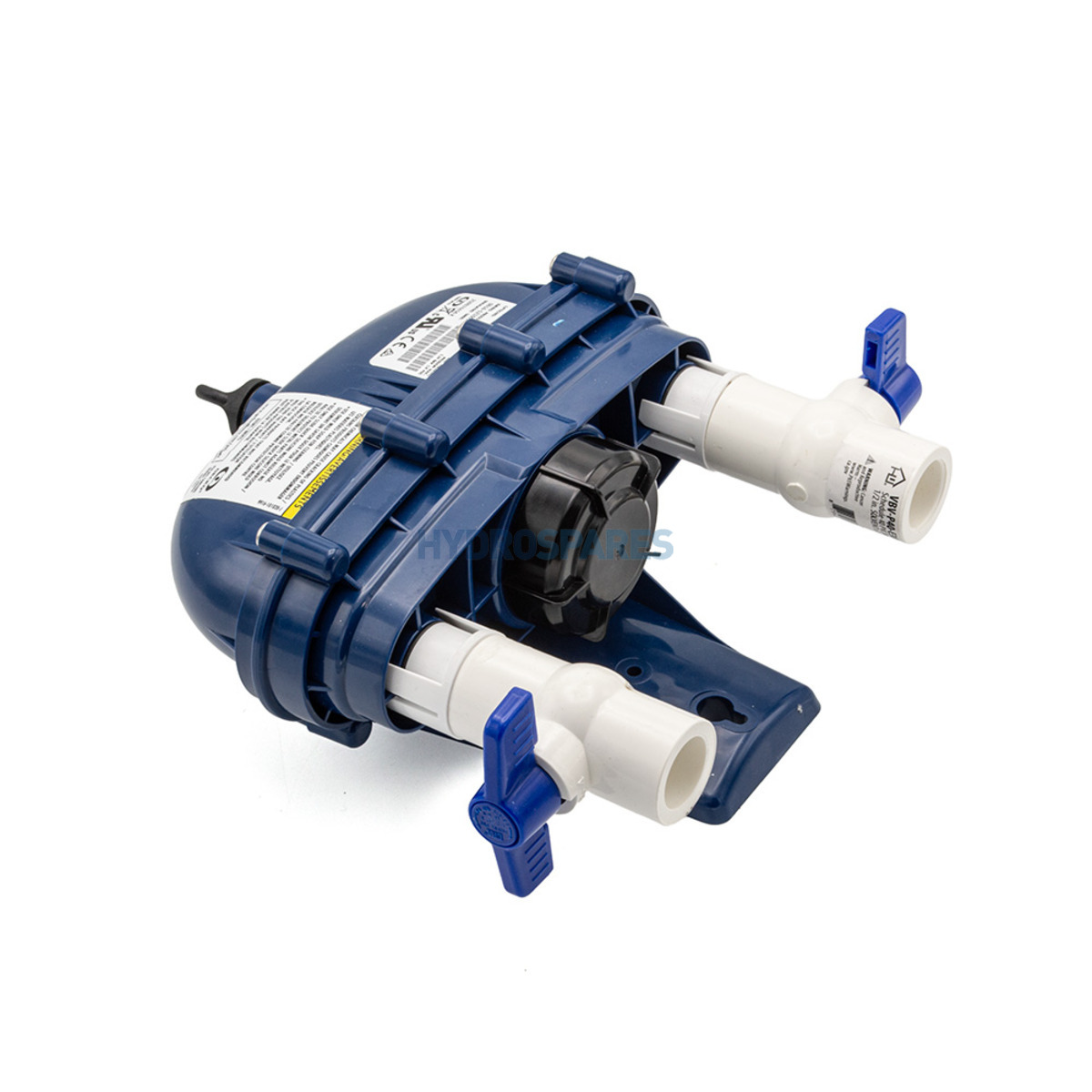

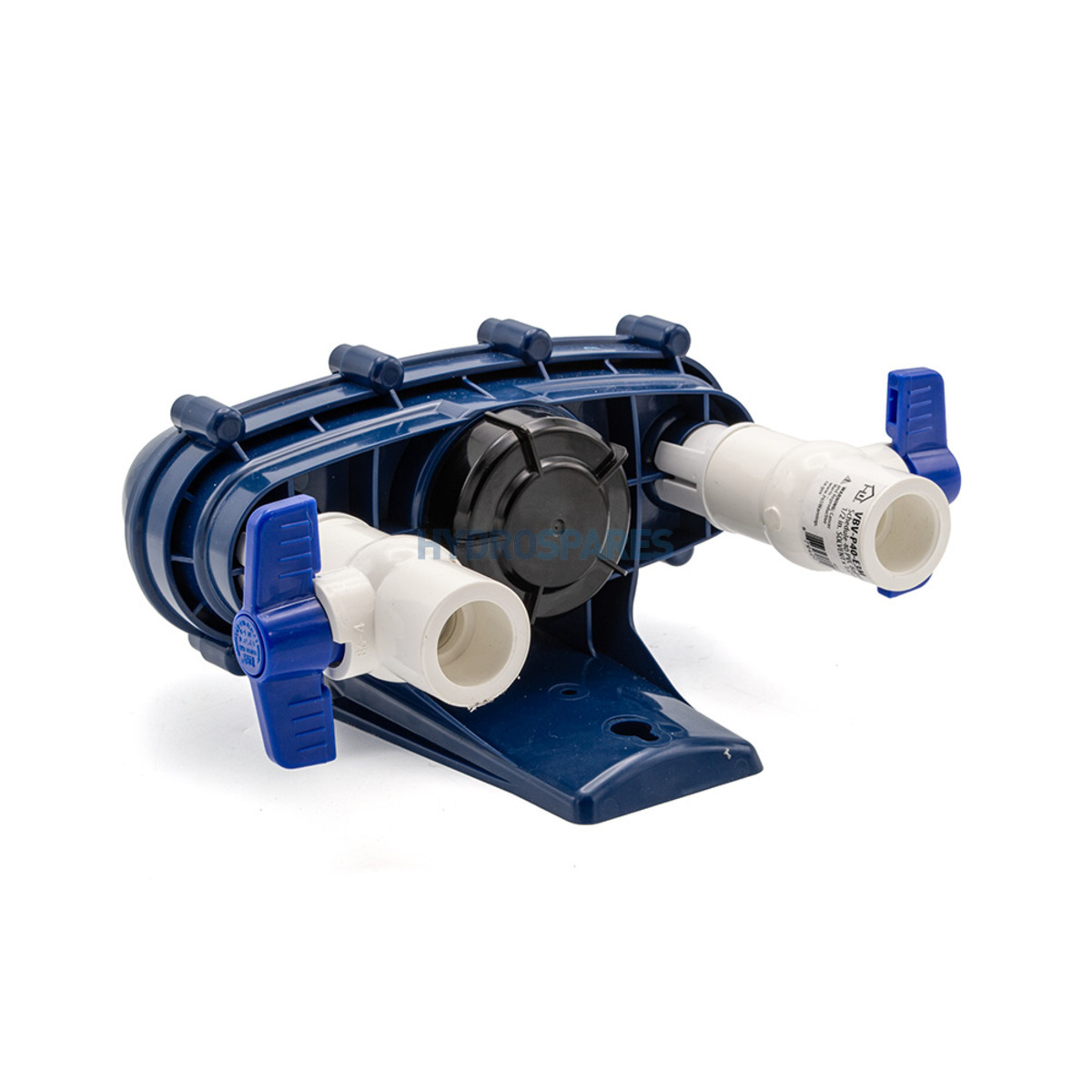

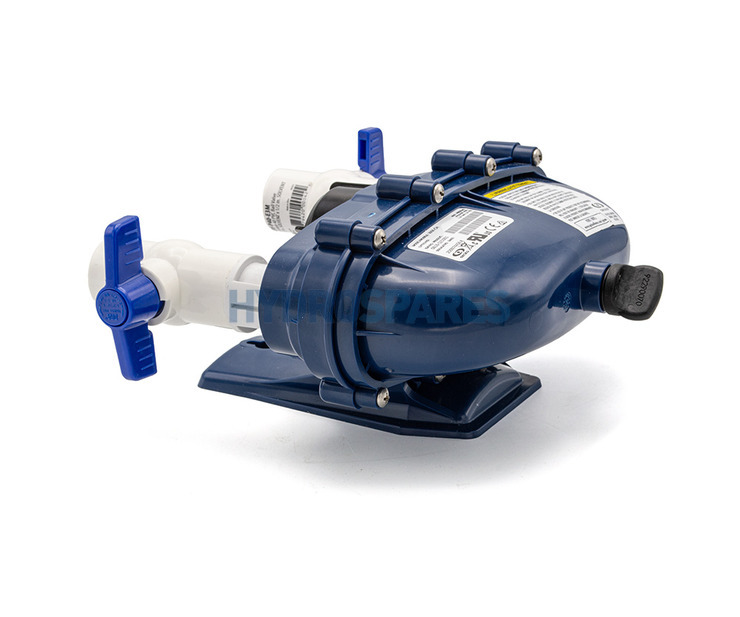

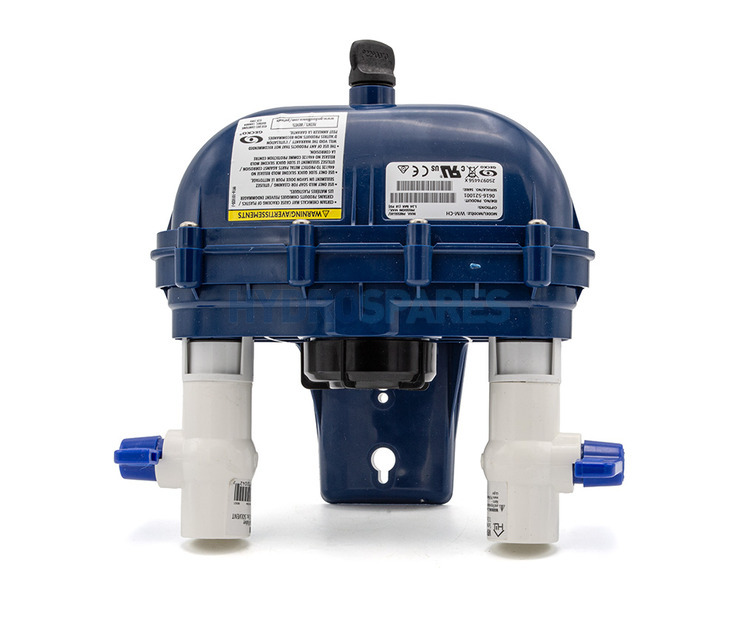

Inline sensor chamber for Gecko's Waterlab system. Provides a sealed, purpose-built sampling body with the correct seat depth for the Waterlab probe and a controlled bypass flow for stable readings. Compact layout with service-friendly access for draining and probe removal.

What it does

• Holds the Waterlab probe in a flowing sample stream for consistent measurements.
• Maintains stable hydraulics in a bypass/low-pressure section of the circulation line.

Compatibility (quick checks)

• Works with Gecko Waterlab probe (sold separately).
• Mount in a bypass loop or other low-pressure section after the filter.
• Ports accept 3/8", 1/2", or 3/4" tubing via supplied barb fittings.
• No fixed flow direction: either valve can be inlet or outlet.

Install tips

• Isolate and depressurise before cutting pipework.
• Prefer near-vertical mounting; keep probe/valves within ±5° of vertical.
• Establish at least 0.5 GPM through the chamber; leave space for valve operation and probe service.
• Use PVC solvent where specified on the valves/fittings; pressure-test on completion.

Common mix-ups

• This is the chamber only; the probe is a separate part.
• Generic filter housings are not suitable?seat depth and flow path differ.

Safety

• Use appropriate solvent weld/unions and allow full cure before power-up.
• Re-check for leaks after the first heat cycle.
