2 Wet End Models

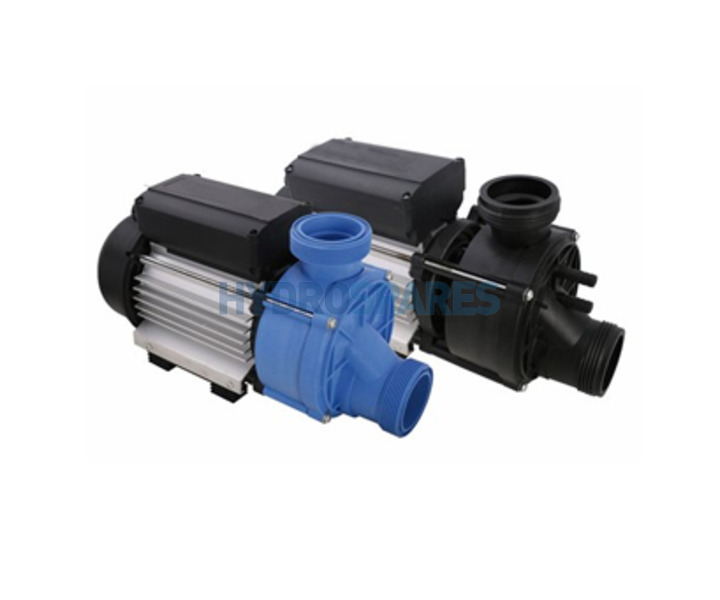

The HA 350 pumps are equipped with either a self draining wet end or a center suction wet end with drain connection.
The standard thread is Buttress, but we can also offer BSP threading to suit your needs.(great for replacing some older Genesis bath pumps
The HA350 Range of pumps has now replaced the Persius 450 pumps, please see specs for each model to see in detail which pump has replaced the old models
Older pumps that the persius range superceeded and now the HA350 replaces include the following
We also recomend this great little pump as a replacement for some Chinese filtration / whirlpool pumps JA35,50,75 & DH1
| SKU - Supplier | 21-35421 |
| Pump Type | Hot Tub Circulation Pump, Whirlpool Bath Pump |
| Motor Power (P1) KW | 0.68Kw/0.9Hp KW |
| Output Power (P2) | 0.56Kw/0.75Hp |
| Volts / Hz | 220-240V / 50-60Hz |
| Amps | 3.1 A |
| Wet End Style | Self Drain / Centre Dis. |
| Suction Thread OD | 2 mm |
| Discharge Thread OD | 2 mm |
| Wet End Colour | Black |
| Rotatable Wet End | Yes |
| O Ring Placement | Groove in Pump Union |
| Pneumatic Switch | Yes |
| Drain Connection | No |
| Pump Model | HA350 |
| Varible Speed Compatible | Yes |
| Cord / Plug Type | Bare End Inc Ferrules |
| Cord Length | 3 M |
| IP Rating | IPx5 |
| Replaces | Direct Replacement for Persius 450 - 21-4532 & 45321 Genesis Compact - GXD75-2XC-S1, GXD75-2XD-S1 Suitable replacement but requires pipe work alteration for Genesis - GD050-2XC-S, GD075-2XC-S & GD050-2XD-S, GD075-2XD-S See HA350 Article No. 20-35721 for direct replacement ( Blue Wet End) for these models |
| Use with | 21-35421 |
Approvals
The HA350 pumps are TÜV approved according to European norms EN60335-1 and EN60335-2-41 with focus on EN60335-2-60 where relevant.
