Waterway Adjustable Mini Jet Body

3/4" Ribbed Barb x 3/8" Ribbed Barb

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 4140
FOr Mini Jets
Water - 3/4" Ribbed Barb
Air - 3/8" Ribbed Barb
White
4177
222-1040
1 In StockSame day dispatch if ordered by 14:00
Fast UK Delivery

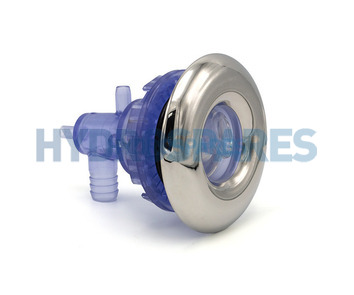

Waterway Adjustable Mini Jet Body
£8.66
RRP £11.54

Waterway Adjustable Mini Jet Body

The jet body or socket is the fitting attached to the spa (inside and outside of the spa wall), into which the jet slots.

The sealing between the jet and the hull is provided by a gasket (to be purchased separately).

We also recommend the use of  a neutral silicone (without aggressive solvents) on the wall fitting as well as on the threads to ensure a complete seal.

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each jet is normally connected to a manifold, and then to a valve, so that the air/water mixture in the jets can be modified. If you do not want bubbles in the water jets, block the air inlet with this cap.

IMPORTANT: Details of Gasket has been verified with our stock however Manufacturers do occasionally change the type of the gasket supplied with the body. If you require specific type of the gasket please contact us to check current version.

Jet Body
Hole Size 10-40 mm
Nominal Drill - Flat Gasket 38 mm
Supplied with Without Gasket
More Info

Dimensions

  • Outside diameter: 59 mm
  • Length: 73 mm
  • Inner diameter: 40 mm
  • Water: 3/4" Ribbed Barb
  • Air: 3/8" Ribbed Barb

Part Number

  • Waterway: 222-1040
