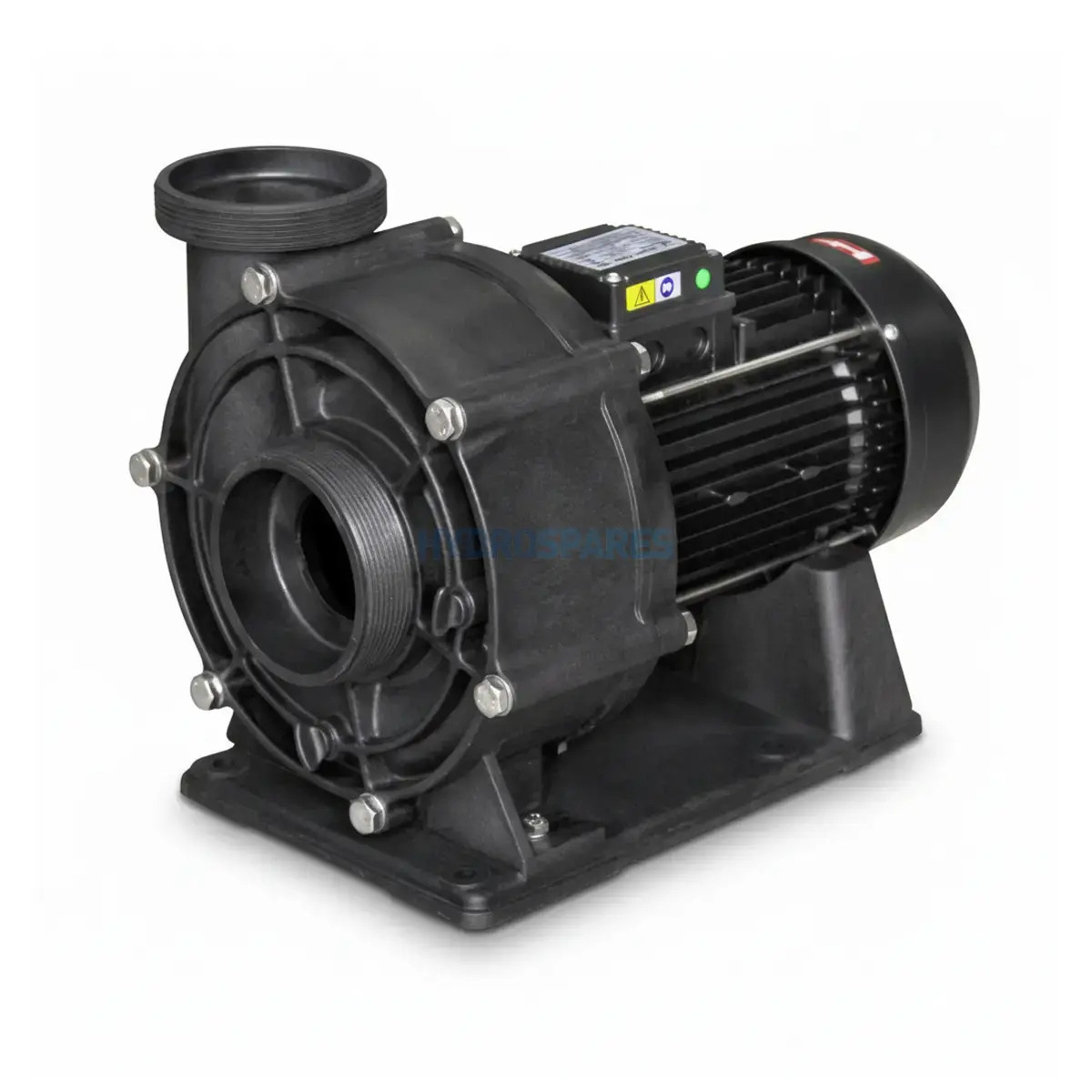

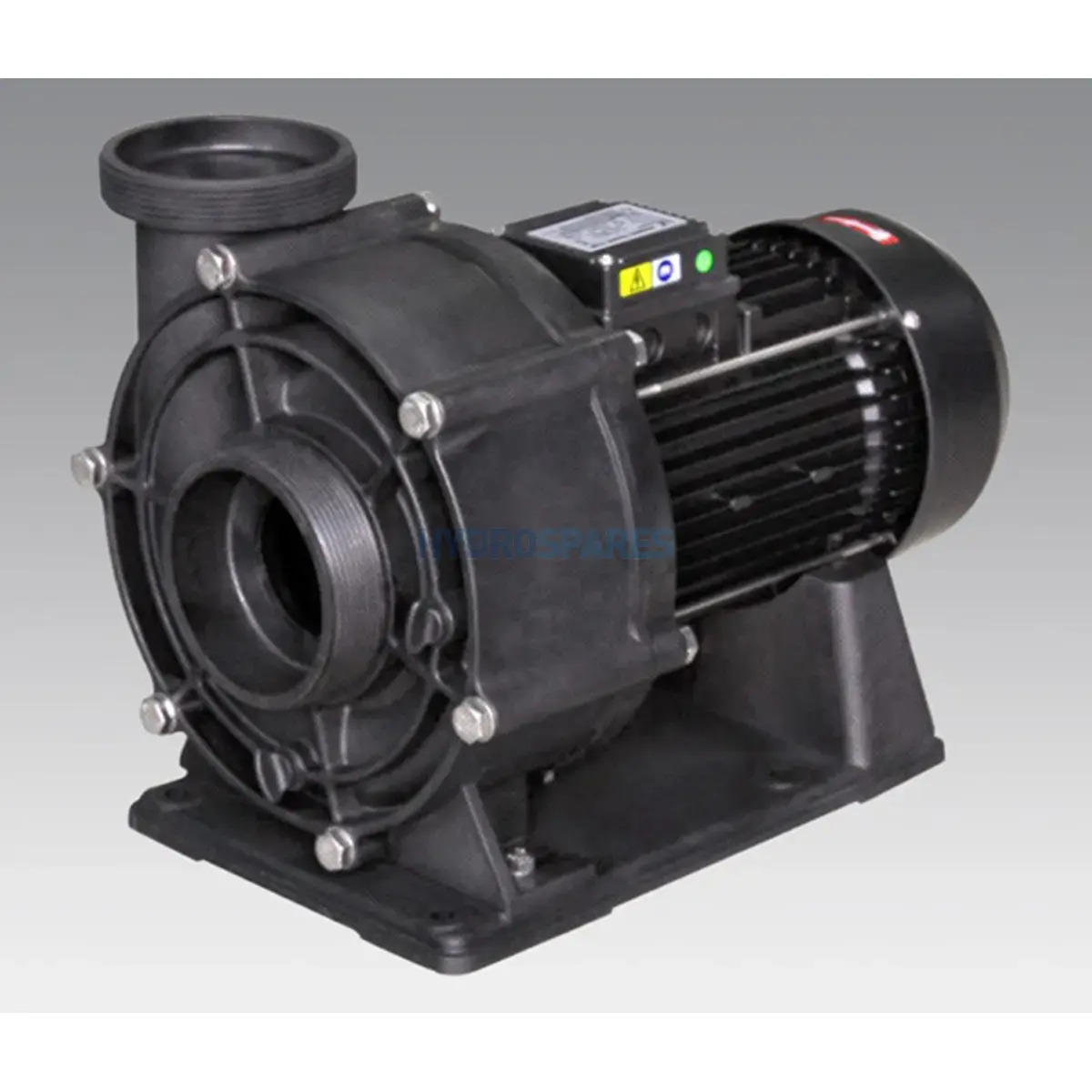

LX Swimming Training Pump WTB250T

3.5HP

LID: 86282

LX Swimming Training Pump WTB250T Main Image

£550.00 Inc VAT

Have a Trade account? Login for trade pricing

SKU: PMP-12828

Out of Stock - Available to Pre-OrderLead time to be confirmed

Request a lead time

QTY

Compare Product

Fast UK Delivery

Next working day from £9.00 (order by 2pm) Standard from £4.50

Trade Prices Available

Request your trade account

This listing is for the WTB250T

Max Head 11.5m
Max Flow 90m3/h
Power 3.5hp

General Performance Range:

Operating Limits:
Max. liquid temperature: +50
Max. ambient temperature: +50
Liquid: for clean water
Max. Working pressure: 3 bar

Features:
Optimised working point in design with features of large flow and high efficiency.
Pump wet end made of high strength engineering plastic.
With wear-resisting mechanical seal system
Impeller for three phase motor fixed by key and nuts, no worry about the reverse direction rotation of motor
Motor stator processed by plastic packaging technology, moisture-proof, thermal conductivity, safety.
The motor shaft isolated from liquid, safety and reliable.

Motor:
Asynchronous, two poles, IP 55 protection, Class F insulation, Continuous operation. Single phase motor with thermal protection, #90 motor stator

Specification Data

Model	Qmax.	Hmax	Power (P1)		Amps		Fitting Size
Model	l/min	m	kw	hp	220V/50Hz	380V/50Hz	2"	3"
WTB220	1100	11	2.2	3	10	-	73/75/76	88.9/90
WTB250	1210	11.5	2.5	3.5	13.7	-
WTB250T	1210	11.5	2.5	3.5	-	4.9
WTB300T	1300	13	3	4	-	5.2
WTB400T	1500	17.5	4	5.5	-	7
