HS PRO - Run Capacitor 12µf 450v

6.3mm Spade Terminals - Stud Mount - CBB60

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 81279
12 Microfarad (µF) ating
400-450V AC Operating Range
6.3mm Spade Terminal Connectors
Stud Mounting with Cylindrical Body
CAP-12145
4 In StockSame day dispatch if ordered by 14:00
Fast UK Delivery
HS PRO - Run Capacitor 12µf 450v
£8.45
RRP £11.27

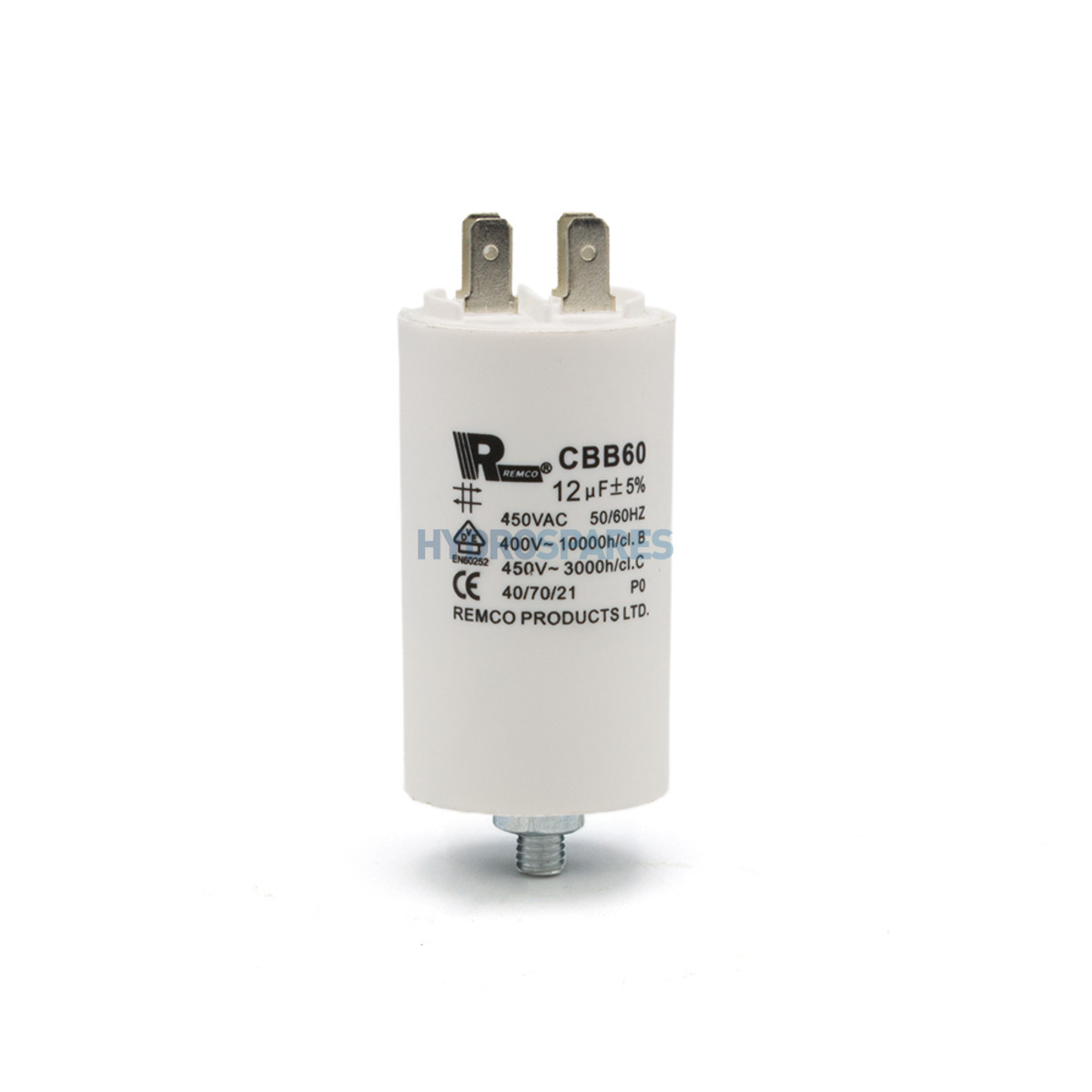

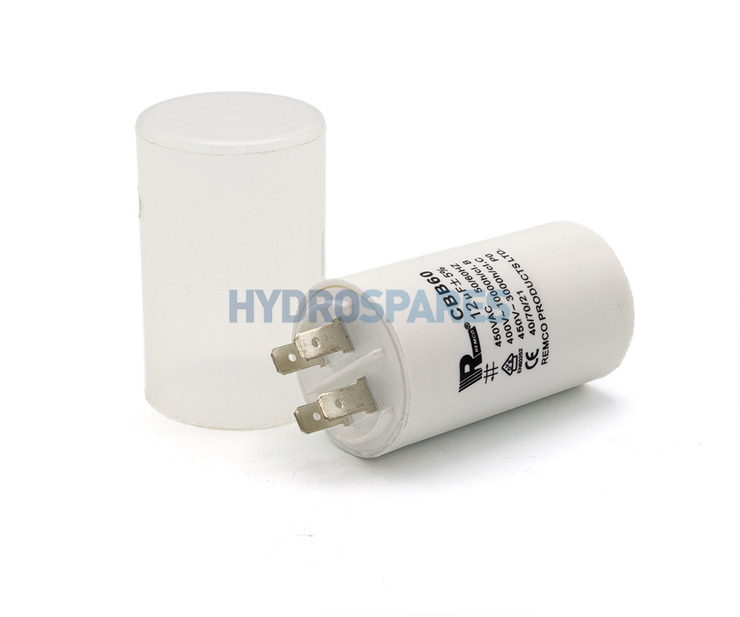

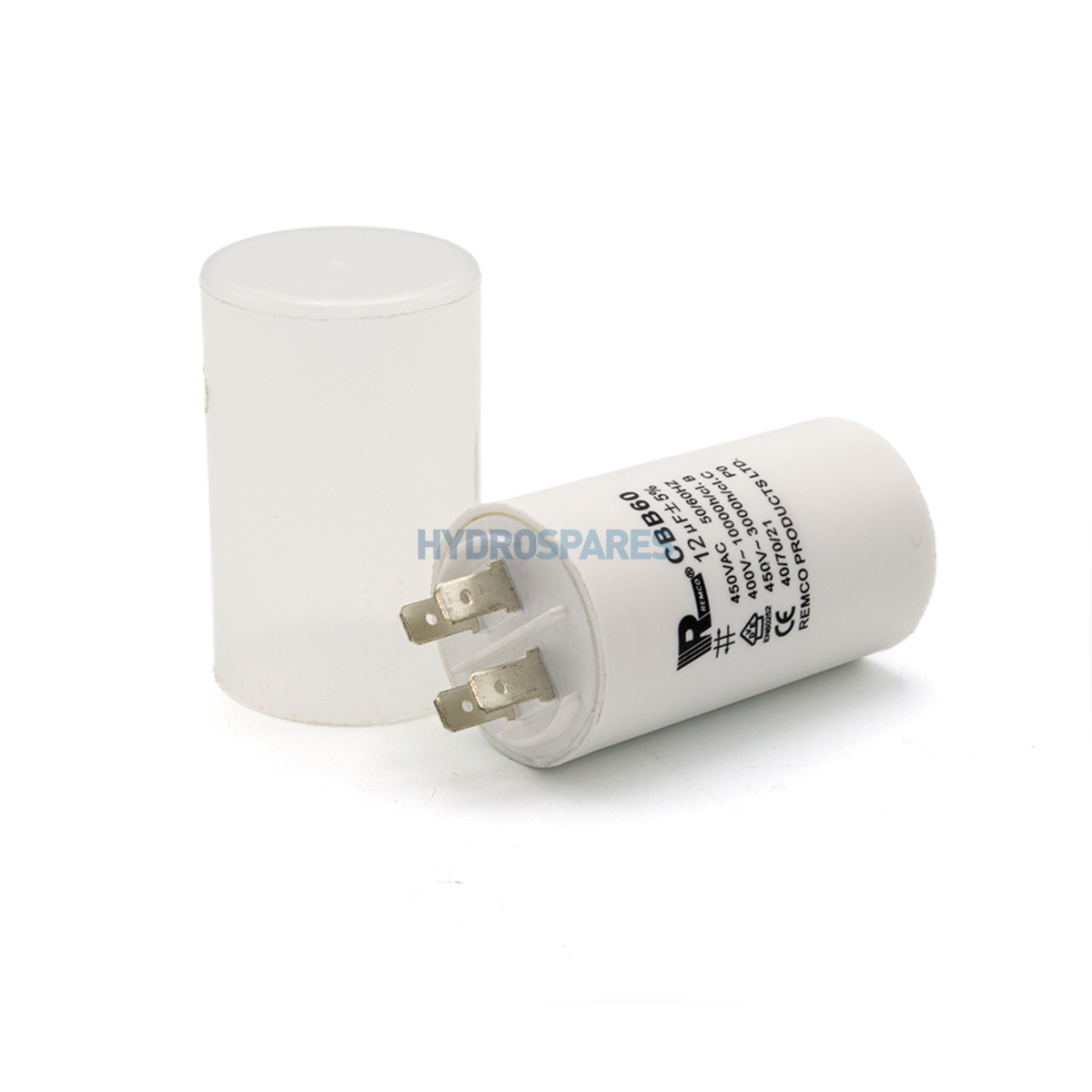

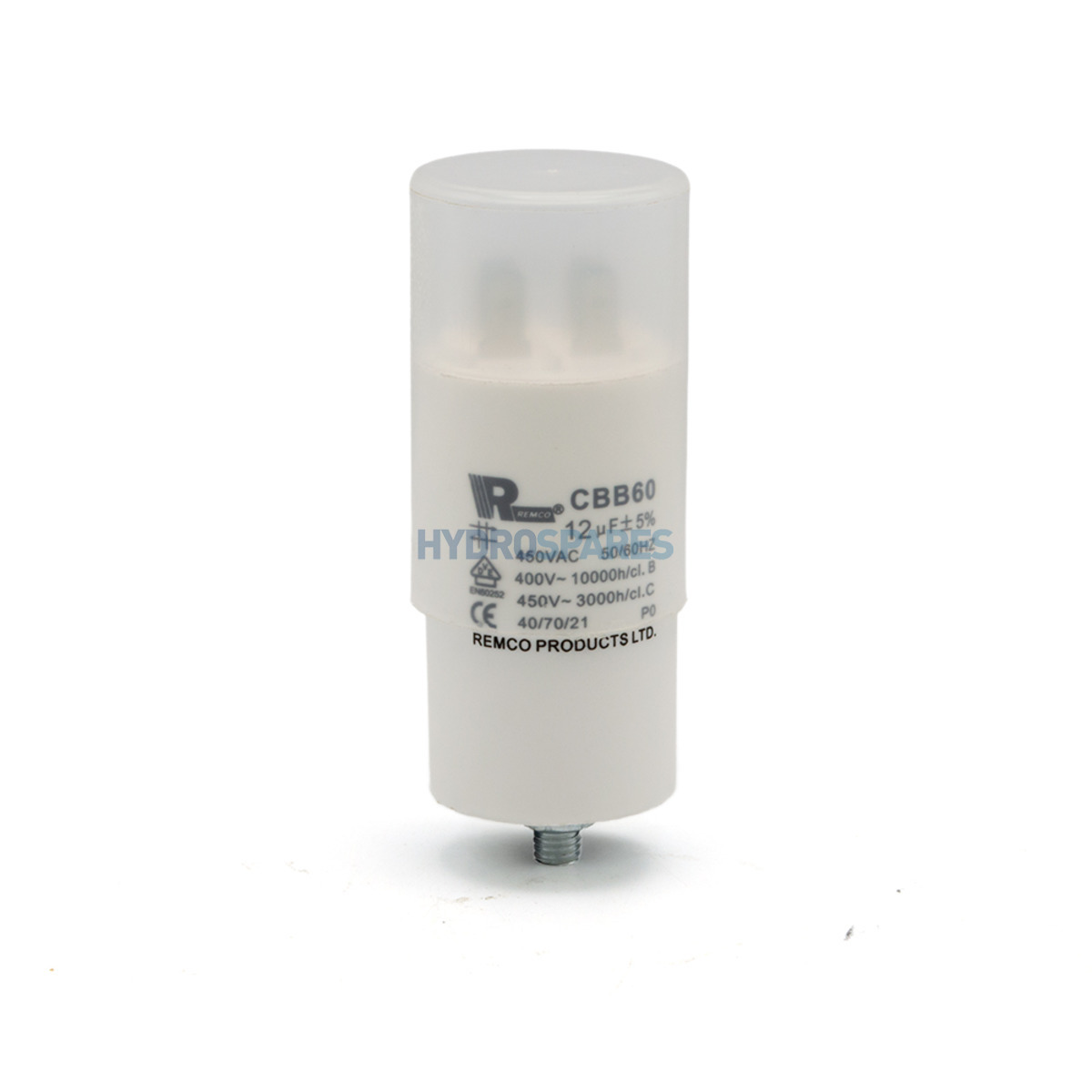

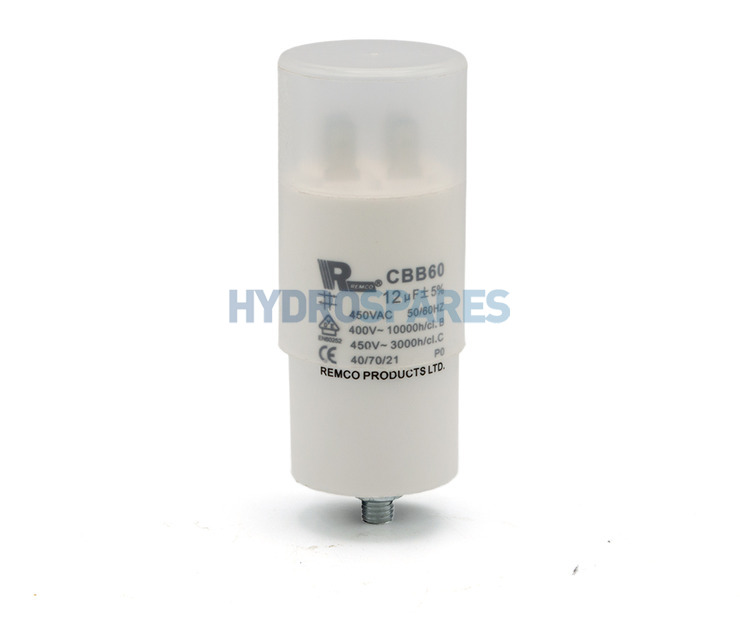

The HS PRO 12µF motor run capacitor is designed for continuous operation in single-phase AC electric motors, such as those found in pumps. It maintains a stable phase shift during running, helping the motor operate efficiently and reliably.

The capacitor features two 6.3mm male spade terminals for secure electrical connection and an integrated M8 stud for mounting. Houses in a durable plastic case, it is rate for 400-450V AC and operates at 50/60Hz, compliant with the CBB60 standard.

Specifications:

  • Capacitance: 12µF
  • Voltage: 400-450VAC
  • Frequency: 50/60Hz
  • Terminal Type: 6.3mm Spade
  • Mounting: M8 Stud
  • Body Diameter: 40mm
  • Body Length: 70mm
  • Case Type: Cylindrical (CBB60)
Electrical Info
Microfarad Rating 12 µF
Microfarad Variation +/-5 %
Voltage 450 V
Hz 50/60 Hz
Capacitor Dimentions
Body Length 70 mm
Overall length inc bolt & spade 94 mm
Body Diameter 36 mm
