Home > Magnaflow HA440 Pumps

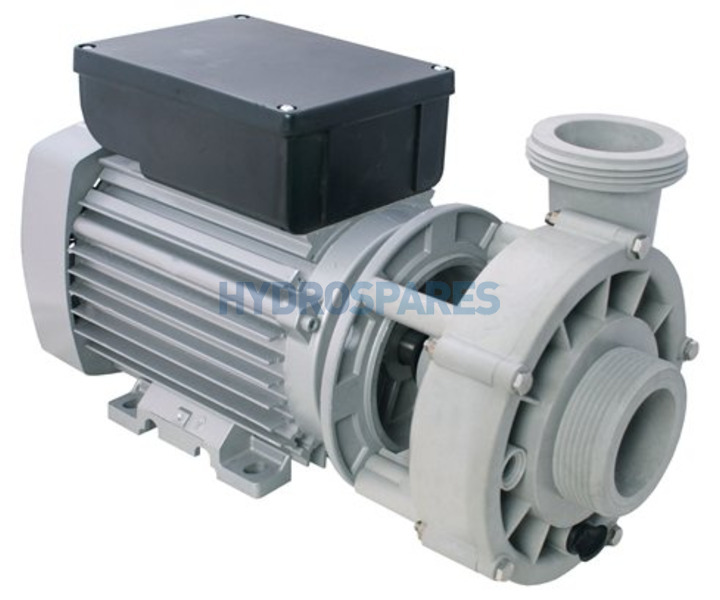

Magnaflow HA440 Pumps - 1 & 2 speed models

Click on the image to enlarge

At a glance

Normally £339 - Special Offer £319
2 Speed & 1 speed models
Buttress 3" thread
Electronic and pneumatic models
Exellent performance
Ingress protection IPx5
Supplied with 2 meter cable
Thermal protection
Motor extruded aluminium
Wet End made from black noryl
Rotatable Wet End
Center suction and 3 drain connections ensure total drainage upon mounting angle

Help Articles &

Downloads

Fact sheet

Tip: Click on a row to see images and specifications for that option.

	Two Speed	Drain Connection
Click to update specifications and images	20-44092V2	79mm Buttress	£265.83
Click to update specifications and images	20-4409V2	79mm Buttress	£265.83
Click to update specifications and images	20-44091V2	79mm Buttress	£265.83

Product Description

Specifications

More Info

Product Reviews

The Hydroair HA440 Magnaflow pump is a very popular pump fitted to many types of spas and Hot Tubs over the years, the pump has had a few changes over the years the main one being the introduction of the version 2 Wet End

Help & Advice

Suitable as a replacement pump for some models of 'Spa Form' Hot tubs.
If the pump you are looking to replace says 'Genesis','GC150-2XJ-B', 'Marlow', 'ITT ', '95-44092-SF' or 'Hydroair' on it anywhere then it is likely that this pump or one of our other items may be suitable.

Model Number 20-44092V2 .
Please note V2 stands for Version 2, these pumps now have a new (Black) wet end. If your old pump has model number 44092 then you have a version 1 (with a Black wet end).
Note: some early version 2 pumps had a Grey Wet End

The new V2 pumps will fit as a direct replacement for the version 1, however the new pump does not have a groove on the top discharge port of the Wet End for the O ring to sit in. We can overcome this by supplying you with a special gasket, this means the pump will be suitable as a direct swap and you should not have to alter your existing pipework.

GC150-2XJ-B - Although this is the correct replacement pump it is not a direct swap and plumbing alteration would be needed
The GC150-2XJ-B is a discontinued pump and no longer available, however we do offer a pump exchange program please see our GC150 listing page

GC150 exchange program, Only the Blue Wet-End is discontinued as long as your existing wet end is useable condition we can fit a new motor, new seals and fully test and return, this means no plumbing / pipework alterations are needed.

If your unable to use your old pump and have to fit a new Magnaflow 440 pump the we are well placed to assist, please send us some photos of your old pump and pipework connections and we will advise on what parts are needed and how to go about the replacement, we even have a union adaptor which means only one union has to be changed!

SKU - Supplier	20-44092V2
Measurements
Pump Type	2 Speed Pump, Hot Tub Circulation Pump, Hot Tub Jet Pump
Motor Power (P1) KW	Low = 0.3Kw (0.43Hp) High = 1.3Kw (1.86Hp) KW
Volts / Hz	230V / 50Hz
Amps	1.5 / 6.5 A
RPM	1400 / 2900
Capacitor Size(s)	16uf & 25uf
General Power Rating	1.50 Hp
Wet End Style	Centre Suction / Side Dis.
Thread Type	Buttress (male)
Suction Thread OD	79 mm
Discharge Thread OD	79 mm
Thread Pitch	3 mm
Impellor Rating	1.50 Hp
Wet End Colour	Black - used to be Grey
Rotatable Wet End	Yes
O Ring Placement	Groove in Pump Union
Frame Size	56 Frame
Pneumatic Switch	No
Drain Connection	Yes
Pump Model	440
Varible Speed Compatible	No
Cord / Plug Type	Bare End Inc Ferrules
Cord Length	2 M
Pump Aliases	HA 440, ITT Magnaflow,
Replaces	Magnaflow Version 1 20-44092 or 95-44092-SF flat gasket required - please see help and advice article for further info Genesis GC150 range (blue wetend) - pipe work alteration needed please see help and advice article or GC150 pump exchange program
Note	Flast Gasket required if replacing a Version 1 Magnaflow pump
Hole Size	0 mm
Use with	20-44092V2
