Balboa Venturi Tee Assembly - 1 ½"

For Gunite Wall Fittings

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

LID: 1668
balboa
1 ½" Connection
PVC
White
0900
10-4320+
52 In StockSame day dispatch if ordered by 14:00
Fast UK Delivery
Balboa Venturi Tee Assembly - 1 ½"
£14.99
RRP £17.25

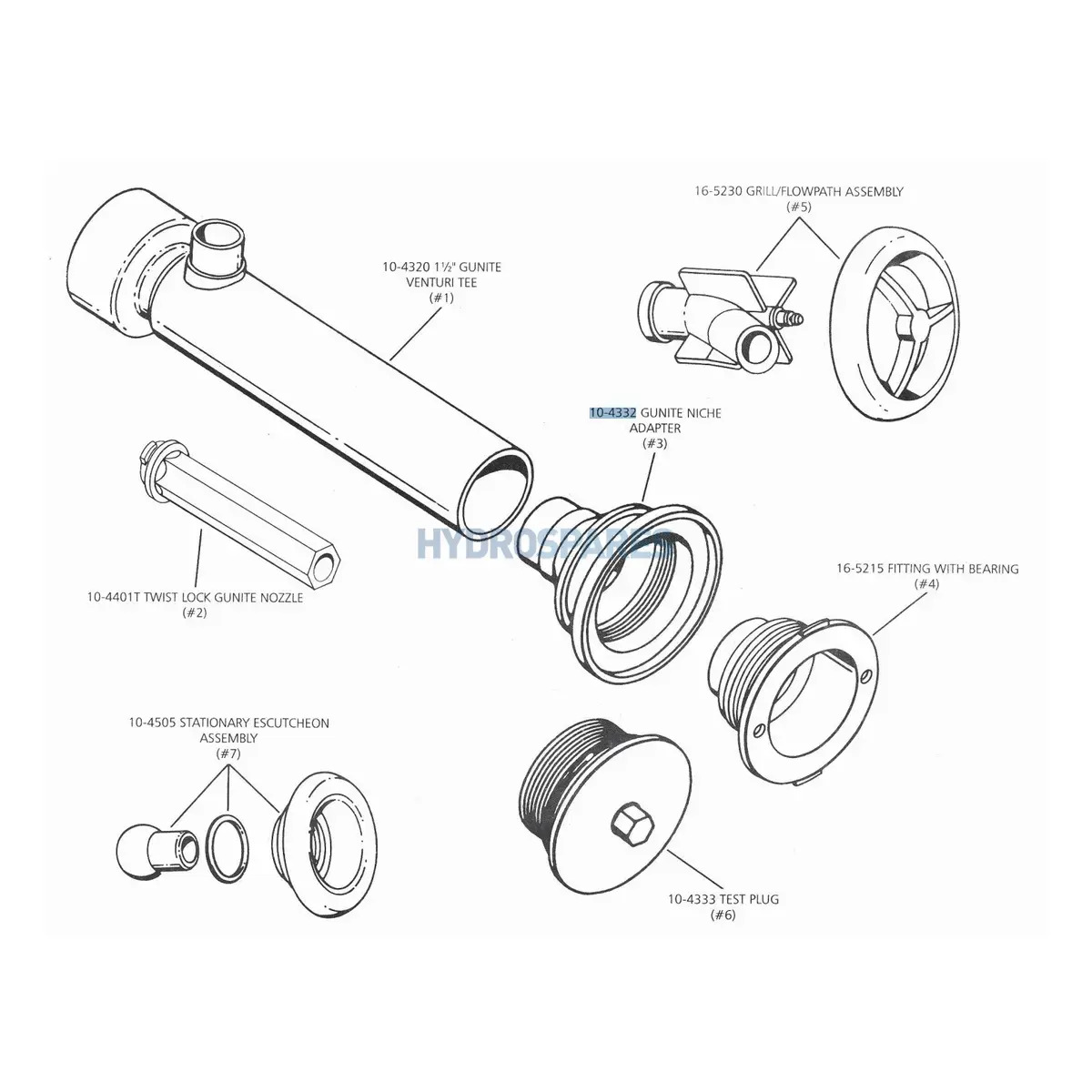

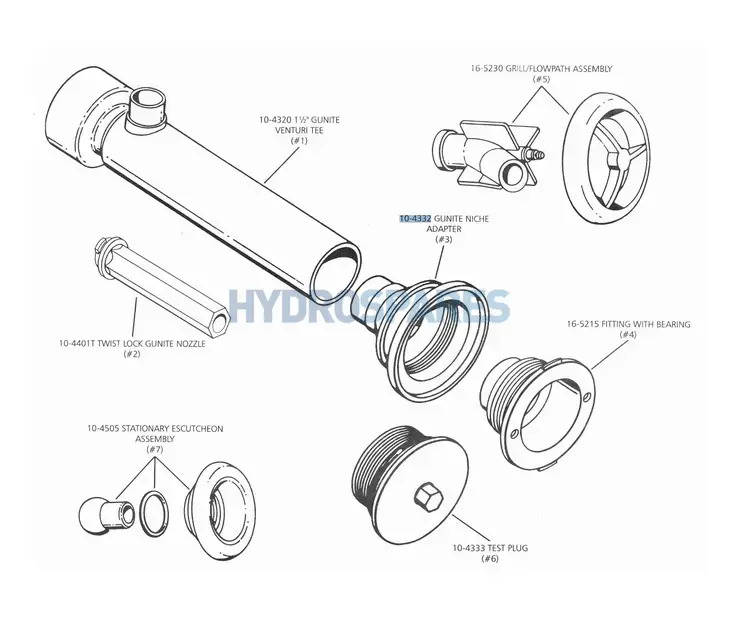

This wall fitting is designed for concrete spas and includes an air intake for Venturi suction. It is usually used with an Eyeball jet, although different configurations are entirely possible.

For the Venturi system, you will need a length of 7 to 10 cm between the end of the injector and the nozzle. You can therefore cut the wall fitting to the desired length for optimal Venturi suction.

You should plan on a flow rate of approximately 5 m³/hour for each jet of this type.

Downloads & Articles
More Info

Dimensions

  • Length: 255 mm
  • Inside diameter of jet insertion: 40 mm
  • Inside diameter water inlet: 48 mm, for 1.5-inch hose
  • Inside diameter air inlet: 21 mm, for 1/2-inch hose
  • Outside diameter air inlet: 27 mm

Part Number

  • HydroAir/Balboa: 10-4320
