HS-PRO Plumb & Play Kit - Gecko Series

Choose Your Pack & Topside Combination

Extended 1 Year Warranty

In addition to the manufacturers standard warranty (usually 1 year) we also offer the opportunity for you to extend this warranty by a further 1 year for a one off fee. This can be arranged at the point of purchase or within a limited time afterwards.
An extended warranty is an easy way to protect your purchase, against any manufacturing defects causing breakdown. You will benefit from free repairs for the term of the warranty period & If your equipment can't be repaired then we will replace it free of charge.(A delivery surcharge may apply for non UK mainland addresses)
This warranty and the standard manufacturer’s warranty does not cover general wear and tear, abuse or misuse or incorrect installation.
If you would like any further information on our extended warranty scheme please call our Hydrospares team on 01326 371 488 OR email us at info@hydrospares.co.uk

HS-PRO
CHoose Your Pack
Choose your Topside
Comprehensive Combos
£1,661.57
( £2,047.51)
PAP-8508, PMP-5760, 6995, TOP-7468
Choose Your Kit
Choose Your Topside
Available to Order 15:00 Cut off Same day dispatch on orders before 15:00 More stock (48) on order
Earn 15794 loyalty points
Extended Warranty Available
Extended Warranty Available
Add your 1 year warranty in the basket
Share this product:
HS-PRO Plumb & Play Kit - Gecko Series
£1,661.57
RRP £2,047.51
PAP-8508, PMP-5760, 6995, TOP-7468

The HS PRO "Plumb & Play" Equipment Pack is a simple system that once installed, offers a complete solution to power any hot tub or Spa project.

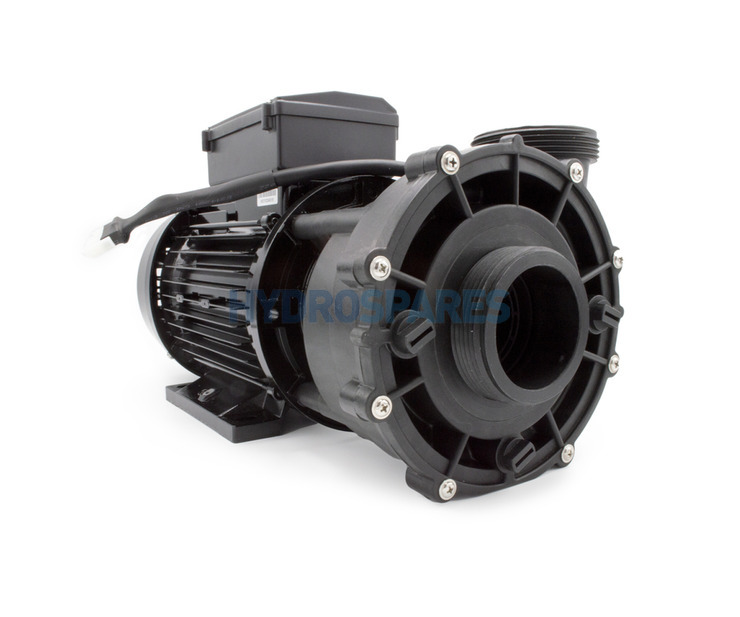

This uses a 2 Speed pump as the main pump which provides a low speed for its main circulation / filtration objectives with the high speed for providing a massage function. The footprint with this configuration is tiny considering its features.

Simply select the option (detailed in the table below) followed by your choice of topside and your kit will be built and supplied to you ready to go! You just need to Plumb and Play!

At its heart is a Gecko IN.YE-5 control pack which houses a 3kW heater and is Wi-fi Ready. The packs are available in a few various configurations.

All Packs include isolation valves to allow for easy maintenance and filter changes.

As a rough guide a 2HP pump will power up to 8 jets. If more jets are required you can select an option with a 2nd massage pump (Options E - H)

The equipment pack range is intended for domestic/very light commercial use & are ideal for a custom built spa or pool.

Equipment packs have been designed and built with a few simple but really useful features in mind, these include

  • Swept Elbows to keep flow friction to an absolute minimum
  • All 2" pipe work and fittings for maximum flow rates
  • Top load Cartridge Filter for easy access and minimal water loss when changing / cleaning your filters
  • Electric components (spa pack) has been mounted at opposite end to the filter where water spillages are likely
  • All components are mechanically fixed / bolted to the tray using stainless steel fixings
  • Slice Valves used to isolate a section of your spa so you can work on a specific component.
  • Filter System has built in Bypass valve, this keeps flow rates up when filter is clogged / in need of changing and puts less strain on the pump.
  • Components used are of the high quality and from the main Manufacturers so spares are always easily available.


Option
Control Box
Pump 1
Pump 2 BlowerAux Heater Total Heating KWSpa Pack
Setup
Option A
IN.YE-5
2 Speed
2Hp
-
-
-
3Kw
1
Option B
IN.YE-5
2 Speed
2Hp
 -
1.0 Hp
-
3Kw
5
Option C
IN.YE-5
2 Speed
2Hp
-
-
Yes
6Kw
1
Option D
IN.YE-5
2 Speed
2Hp
-
1.0 Hp
Yes
6Kw
5
Option E
IN.YE-5
2 Speed
2Hp
1 Speed
2Hp
-
-
3Kw
3
Option F
IN.YE-5
2 Speed
2Hp
1 Speed
2Hp
 1.0 Hp
-
3Kw
7
Option G
IN.YE-5
2 Speed
2Hp
1 Speed
2Hp
-
Yes
6Kw
3
Option H
IN.YE-5
2 Speed
2Hp
1 Speed
2Hp
1.0 Hp
Yes
6Kw
7
Topside Information
Topside Shape Rectangle
Topside Dimensions 190 mm
Topside Series IN.K
Complete Topside MPN 0607-005024
Topside Compatibility IN.YJ-3, IN.YE-5, IN.YT-7, X SERIES
Topside Display Type Touch Screen
Topside Information
Spare Part Diagram
Overlay Information
Overlay Display Cut Out No
Diagram
Spare Part Diagram
