Gecko - Waterlab Kit - Chamber + Probe Bundle

Works with in.touch 3+ and compatible in.y packs (2012+)

LID: 81295

Gecko - Waterlab Kit - Chamber + Probe Bundle Main Image

Complete chamber + probe

For in.touch 3+

Min 0.5 GPM | Max 18 psi

IPX5 probe

£791.45 Inc VAT

Have a Trade account? Login for trade pricing

SKU: 12564

2 In StockSame day dispatch if ordered by 14:00

QTY

Compare Product

Receive by: Wednesday

Fast UK Delivery

Next working day from £9.00 (order by 2pm) Standard from £4.50

Trade Prices Available

Request your trade account

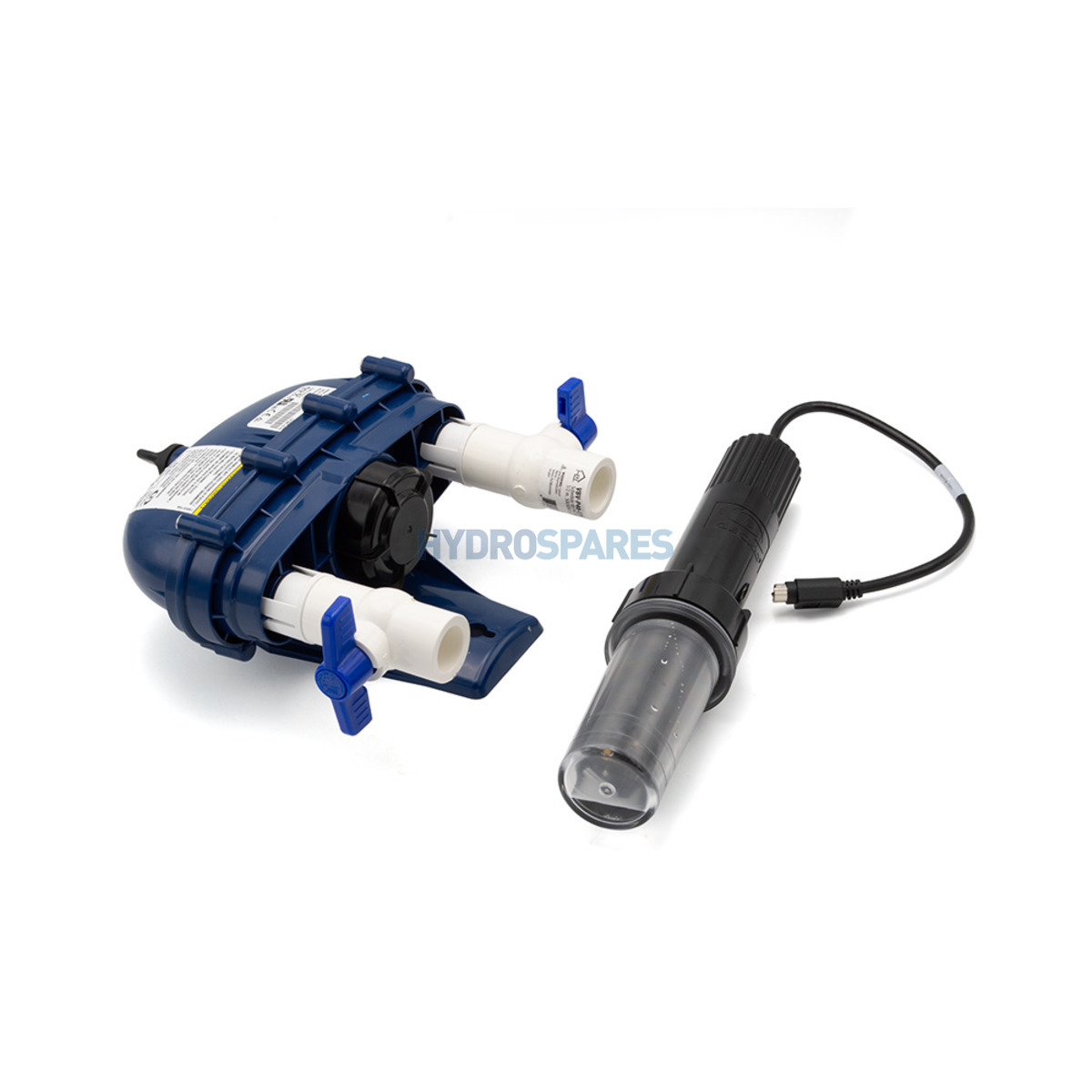

This kit combines the Gecko Waterlab chamber and Waterlab probe to fasttrack a clean, reliable install. The chamber provides a sealed sampling body with the correct seat depth and service valves; the probe lives in that controlled flow path for stable pH/ORP/temperature readings. Use the supplied barb fittings to match your bypass tubing (3/8", 1/2", or 3/4").

What it does

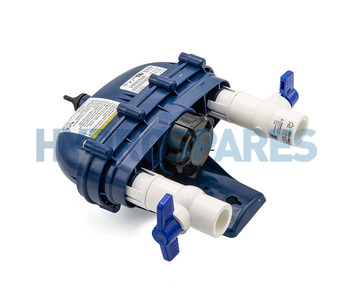

Chamber: holds the probe in a flowing sample stream; no fixed flow direction; compact footprint.

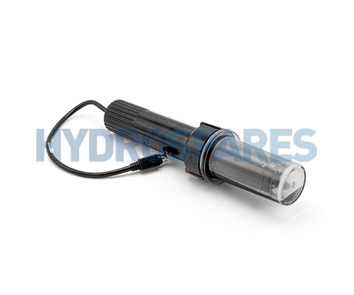

Probe: multiparameter sensor designed for the Waterlab system and in.touch 3+ integration.

Quick compatibility

Requires in.touch 3+ (CO module with water monitoring board) for monitoring features.
Works with in.yt / in.ye / in.yj spa packs manufactured 2012+.
Not supported on in.touch 2 or in.touch 3.

Install highlights

Plumb the chamber after the filter and before UV/ozone; run a bypass with 0.5 GPM.
Prefer nearvertical mounting (probe/valves within ±5° of vertical); allow clearance for service.
Connect the probe to the CO port's short cable on the in.touch 3+ spa module; confirm LED status.

Key Specifications (summary)

Chamber

Dimensions (L × W × H): 229.87 × 200.91 × 180.85 mm (9.05 × 7.91 × 7.12 in)
Weight: 618 g
Min flow (bypass): 0.5 GPM (recommended)
Max pressure: 18 psi ( 1.24 bar / 124 kPa)
Ports: barb fittings for 3/8" / 1/2" / 3/4" tubing
Flow direction: not directional

Probe

Dimensions (L × W × H): 60.96 × 36.70 × 264.66 mm (2.40 × 1.42 × 10.02 in)
Weight: 552.5 g
Ingress protection: IPX5
Operating/storage temperature: 0–80 °C (32–176 °F)

Downloads & Articles

TechBook - Gecko Waterlab DOWNLOAD

More Info

Integration

Plug the probe into the in.touch 3+ CO module's short cable (spa module). CO LED states: blinking blue = normal; full red = no probe; full yellow = probe not yet identified.

Installation & service

Bypass placement: after filter, before UV/ozone. Maintain =0.5 GPM through the chamber.
Orientation: probe tip immersed; valves/probe within ±5° of vertical.
Start-up: allow ~30 minutes for readings to stabilise once flow is established.
Calibration: typically once over service life (~2 years of use) via Gecko app with reliable pH buffers.
Storage (probe): keep sensing end wet; never store in deionised water.

Safety

Isolate and depressurise before cutting; use appropriate solvent weld/unions and allow full cure before power-up.
Re-check for leaks after the first heat cycle.

Kit Contents
